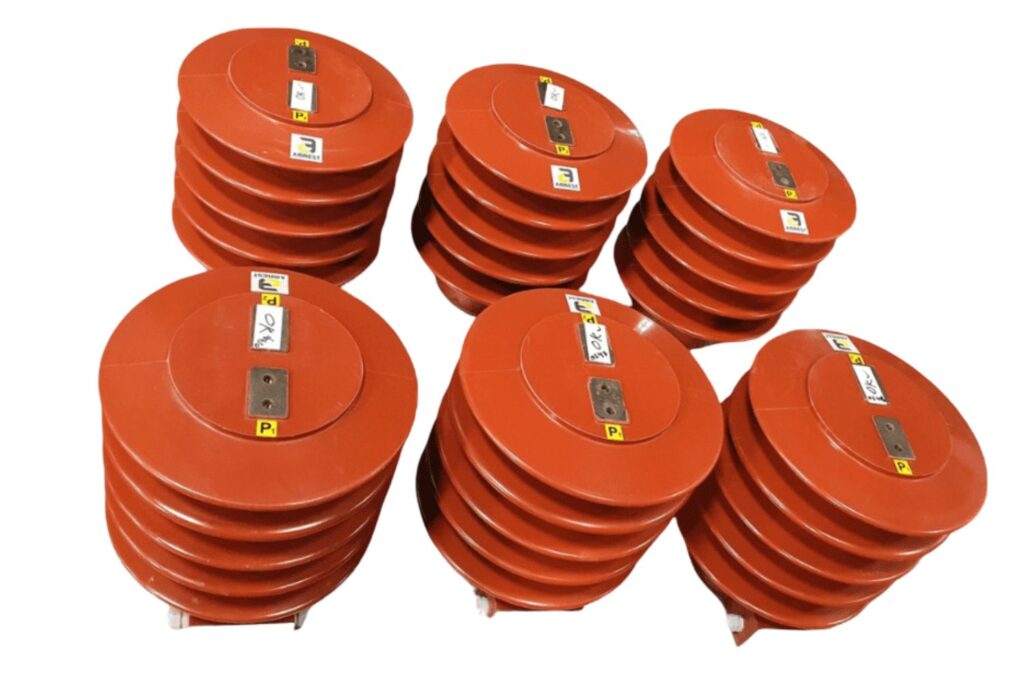

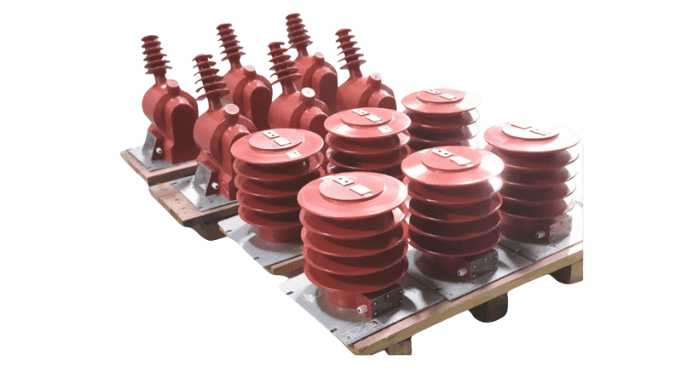

MV Outdoor Resin Cast Current Transformer

AMREST is the manufactures, exporters and suppliers in India of MV Outdoor Resin Cast Current Transformer up to 33kV Class. Amrest Manufacture outdoor dry type Current Transformer as per customer requirement for metering and protection purpose. Available metering and production class as both in a Current transformer or separate metering and protection as per requirement. A current transformer is designed to convert the primary rated current which flows through the primary winding. The secondary winding must generally be short circuited at any time, otherwise dangerous high voltages can occur at the secondary terminals.. The demand in the domestic as well as international market has increased as Dry Type Cast Resin Transformer is available in standard specifications. In addition to this, we also provide Dry Type Cast Resin Transformers at market leading prices. The transformer is also loaded with advanced features to assure excellent performance in respective applications.

Amrest Electrical is a trusted manufacturer and global exporter of Medium Voltage (MV) Outdoor Resin Cast Current Transformers (CTs). With a focus on high-performance insulation materials and state-of-the-art production technology, we deliver products that are maintenance-free, PD-free, and built for long operational life in harsh outdoor environments.

⚡ Product Overview

We specialize in MV Outdoor Resin Cast Current Transformers, designed using premium cycloaliphatic epoxy resin and manufactured through Air Pressure Casting (APC) technology to ensure Partial Discharge (PD) Free performance.

Key Applications:

  • Medium Voltage Switchgear Panels
  • Outdoor Metering and Protection Systems
  • Utility Substations
  • Renewable Energy Installations (e.g. Solar, Wind)

🌟 Product Highlights

  1. Voltage Class: Up to 36 kV
  2. Current Rating: Up to 3000 A
  3. Resin Type: Outdoor-grade cycloaliphatic epoxy resin
  4. Manufacturing Process: Air Pressure Casting (PD-free)
  5. Accuracy Class: 0.2s, 0.5, 1, 3 (as per IEC 60044-1 / IEC 61869)
  6. Protection: UV, moisture, and pollution-resistant
  7. Insulation Class: Class E / F as required
  8. PD Level: <10 pC at rated voltage

🛠️ Advanced Manufacturing Technology
Air Pressure Casting (APG/APC) ensures:

  • ✅ PD-Free Performance: Free from internal air voids and micro-bubbles
  • ✅ Void-Free Insulation: Enhanced dielectric strength and reliability
  • ✅ Dimensional Accuracy: Ideal for complex, high-precision components
  • ✅ Repeatable Quality: Batch consistency ensured by controlled pressure molding
  • ✅ Fast Production Cycle: Efficiency without sacrificing performance


🌍 Cycloaliphatic Resin Benefits

🛡️ UV Resistant – Withstands sunlight without chalking or degradation

💧 Hydrophobic – Excellent water-repellent surface, suitable for rainy & humid zones

🔥 High Tracking Resistance – Prevents flashovers and tracking in polluted environments

🧊 Thermal Stability – Withstands temperature fluctuations, ideal for outdoor use

We are Manufacturer, Exporters and Supplier of MV Outdoor Resin Cast Current Transformer for India, United Arab Emirates , Dubai , Sharjah , Saudi Arabia , Bahrain , Iraq , Kuwait , Oman , Qatar , Jordan , Afghanistan , Egypt , Germany , South Africa , Zambia , Ghana , Nepal , Bhutan , Bangladesh , Algeria , Australia , Canada , Chile , France , Indonesia , Italy , Kenya , Malaysia , Sudan , Turkey , Yemen , Zimbabwe and other countries.

⚡ Product Overview

We specialize in MV Outdoor Resin Cast Current Transformers, designed using premium cycloaliphatic epoxy resin and manufactured through Air Pressure Casting (APC) technology to ensure Partial Discharge (PD) Free performance.

  • Key Applications

    -> Medium Voltage Switchgear Panels
    -> Outdoor Metering and Protection Systems
    -> Utility Substations
    -> Renewable Energy Installations
    (e.g. Solar, Wind)

  • Product Highlights

    -> Voltage Class: Up to 36 kV
    -> Current Rating: Up to 3000 A
    -> Resin Type: Outdoor-grade cycloaliphatic epoxy resin
    -> Manufacturing Process: Air Pressure Casting (PD-free)
    -> Accuracy Class: 0.2s, 0.5, 1, 3 (as per IEC 60044-1 / IEC 61869)
    -> Protection: UV, moisture, and pollution-resistant
    -> Insulation Class: Class E / F as required
    -> PD Level: <10 pC at rated voltage

🛠️ Advanced Manufacturing Technology
Air Pressure Casting (APG/APC) ensures:

  • ✅ PD-Free Performance: Free from internal air voids and micro-bubbles
  • ✅ Void-Free Insulation: Enhanced dielectric strength and reliability
  • ✅ Dimensional Accuracy: Ideal for complex, high-precision components
  • ✅ Repeatable Quality: Batch consistency ensured by controlled pressure molding
  • ✅ Fast Production Cycle: Efficiency without sacrificing performance
